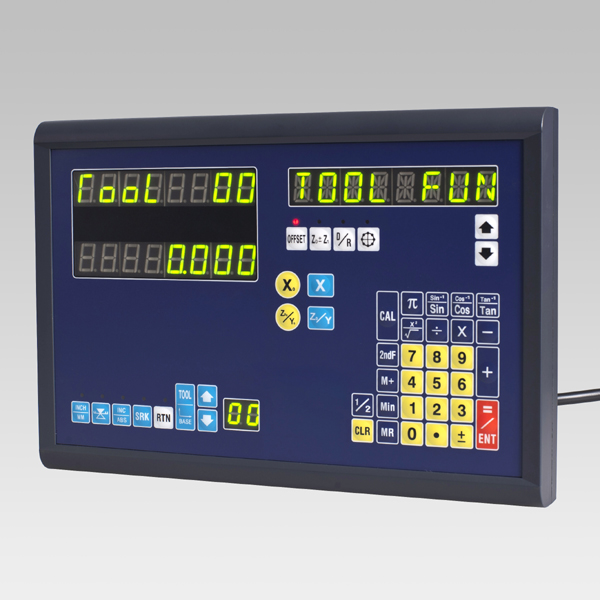

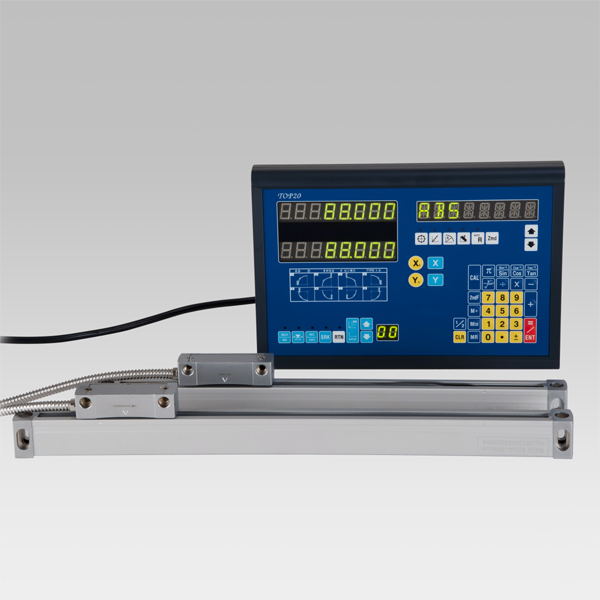

Name：Digital readout

Specification:

1. Lathe, milling, EDM applications
2. Cost effective design
3. One touch axis zero keys
4.Tool Compensation and Tool Number.
5.Diameter or Radius Reading.
6.Set tool compensation dimension
7. Bright clear wide-viewing angle display
8. Wipe clean membrane keypad
9. Ideal replacement for retrofit.

SpecificationParameter



FUNCTION 3ML 2L/3L 2M/3M 3E
USED FOR MILLING AND LATHE LATHE MILLING EDM
RESOLUTION 1um/5um 1um/5um 1um/5um 1um/5um
DISPLAY 8LED/AXIS 8LED/AXIS 8LED/AXIS 8LED/AXIS
RESPONSE SPEED 60m/min 60m/min 60m/min 60m/min
QUANTIZING ERROR ±1 COUNT ±1 COUNT ±1 COUNT ±1 COUNT
AXES 3 2,3 2,3 3
CLEAR ● ● ● ●
PRESET ● ● ● ●
HALF(1/2) ● ● ● ●
RECALL ● ● ● ●
MM/INCH ● ● ● ●
ABS/INC ● ● ● ●
LINEAR ERROR CORRECTION ● ● ● ●
RECALL MACHINE REF.POINT ● ● ● ●
PICK MACHINE REF.POINT ● ● ● ●
POWER FAILURE MEMORY ● ● ● ●
SCALE POLARITY SET ● ● ● ●
99.REF. ZERO PLACE ● ●
R CUTTING ●
EASY R ●
SHARING HOLES ON THE LINE ● ●
SHARING HOLES ON THE CIRCLE ● ● ●
SLANT CUTTING ●
RETRACT DEPTH CONTROL ●
ELECTRODE COMPENSATION ●
SHRINK COMPENSATION ● ● ● ●
99 TOOLS COMPENSATION ● ●
DIAMETER/RADIUS ● ● ●
COMMAND ENGLISH DISPLAY ● ● ● ●
CALCULATOR ● ● ● ●
POWER SUPPLY 110-220V 110-220V 110-220V 110-220V
DIMENSION(MM) 260×180×45 290×190×105 290×190×105 290×190×105
WEIGHT(KG) 3 3 3 3.5
